Mark up your media with frame-accurate comments and visual annotations. All comments and annotations sync in real-time across the Iconik Player, web interface, and iOS app, enabling seamless collaboration regardless of which platform your team members use.
Annotations and tools menu

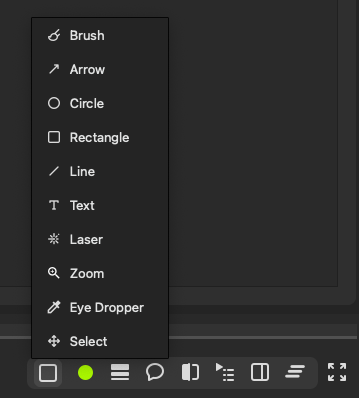

Tools menu
The Iconik Player includes the same annotation tools as the web player. They can be selected from the tools menu

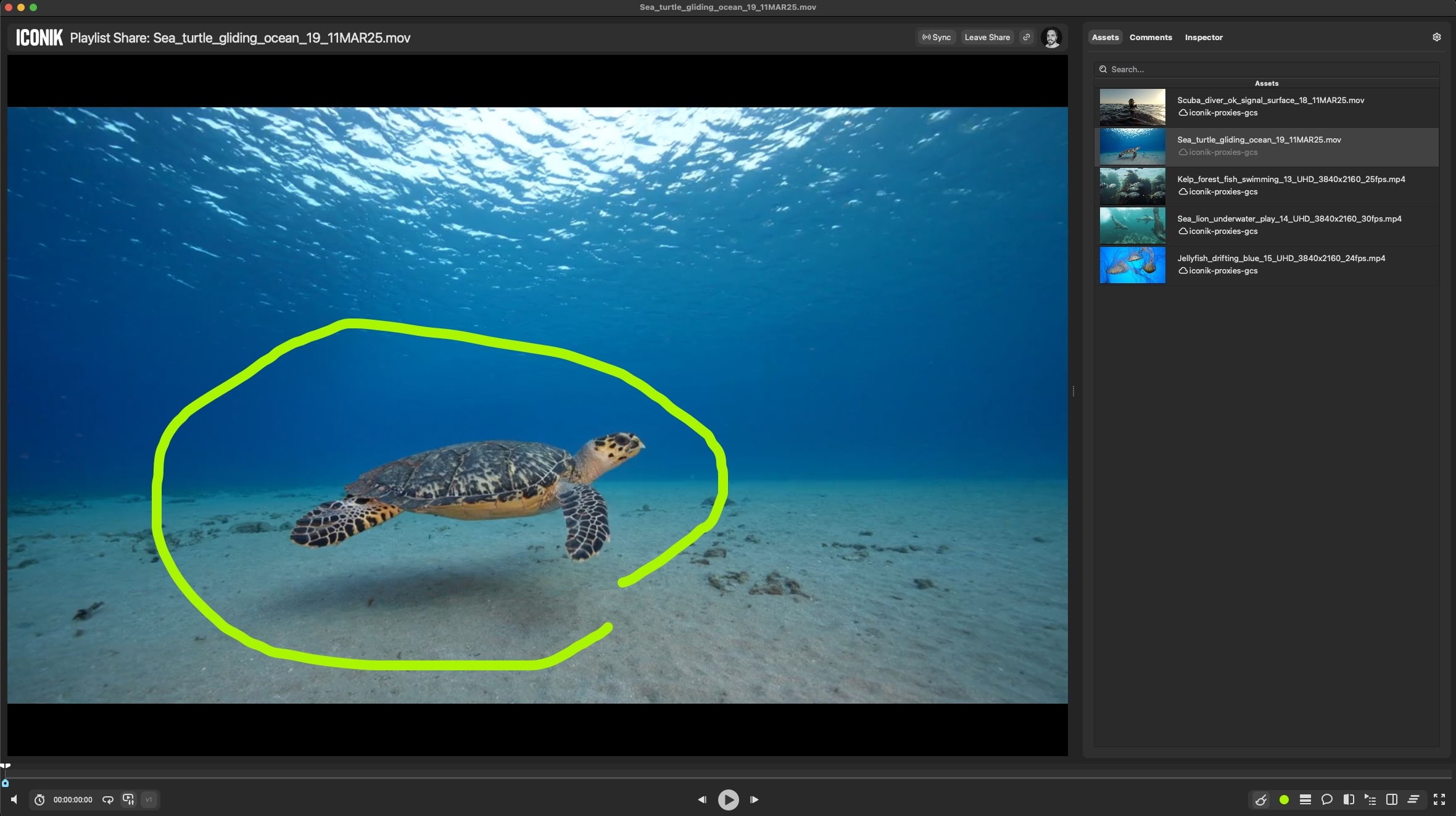

- Brush - Draw freehand lines and strokes on the video

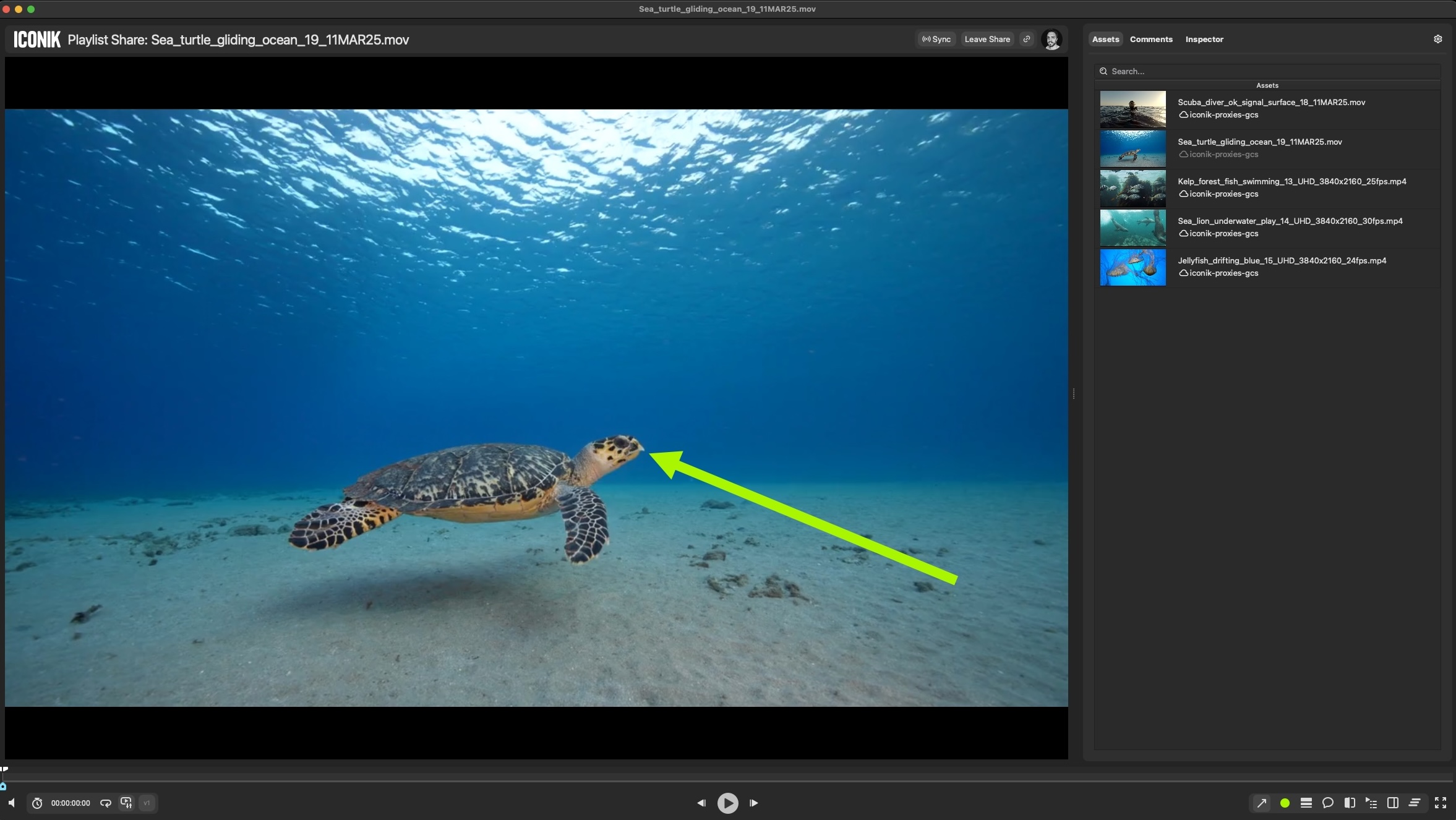

- Arrow - Draw directional arrows to point at specific elements

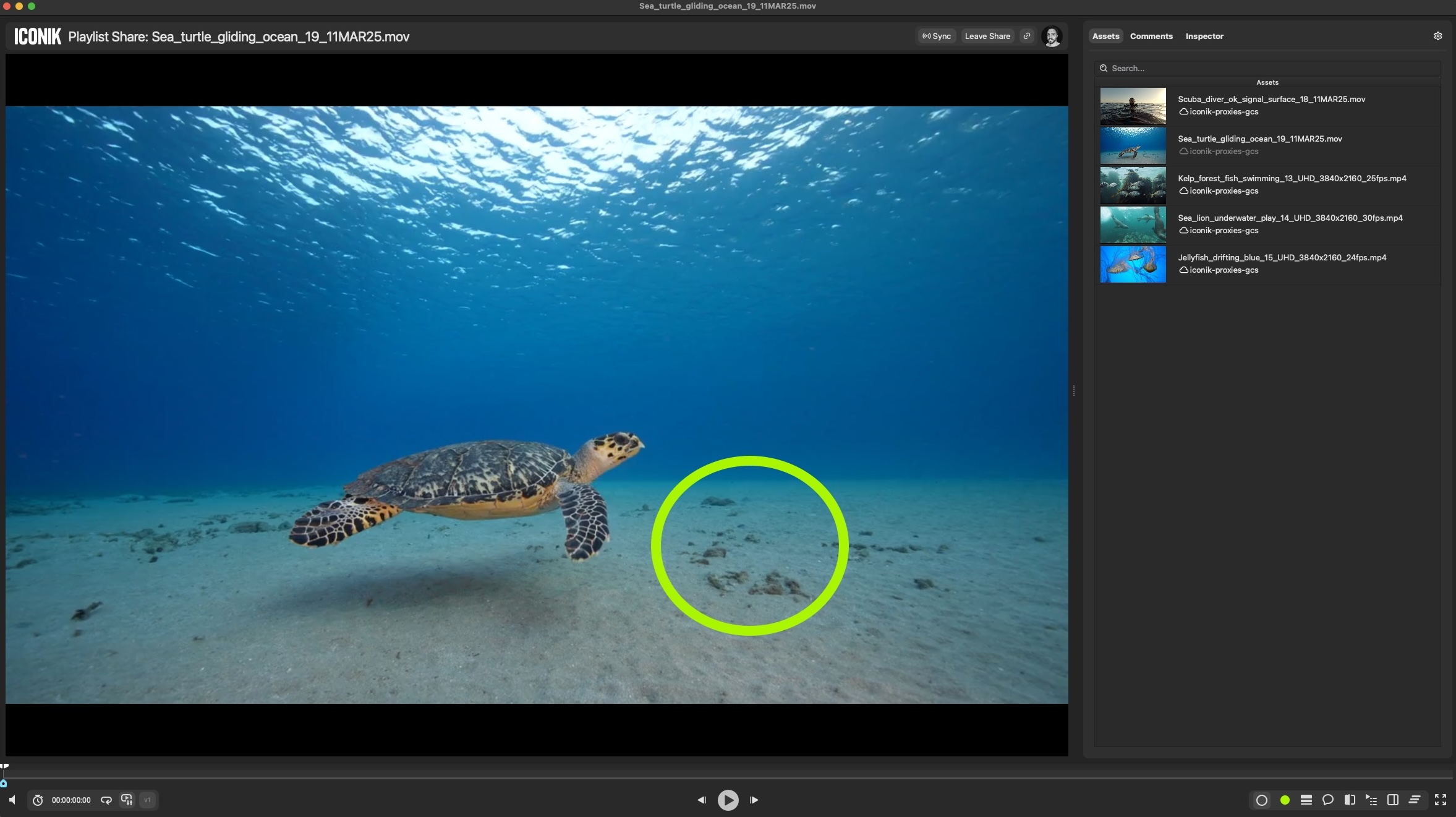

- Circle - Draw circular or elliptical shapes to highlight areas

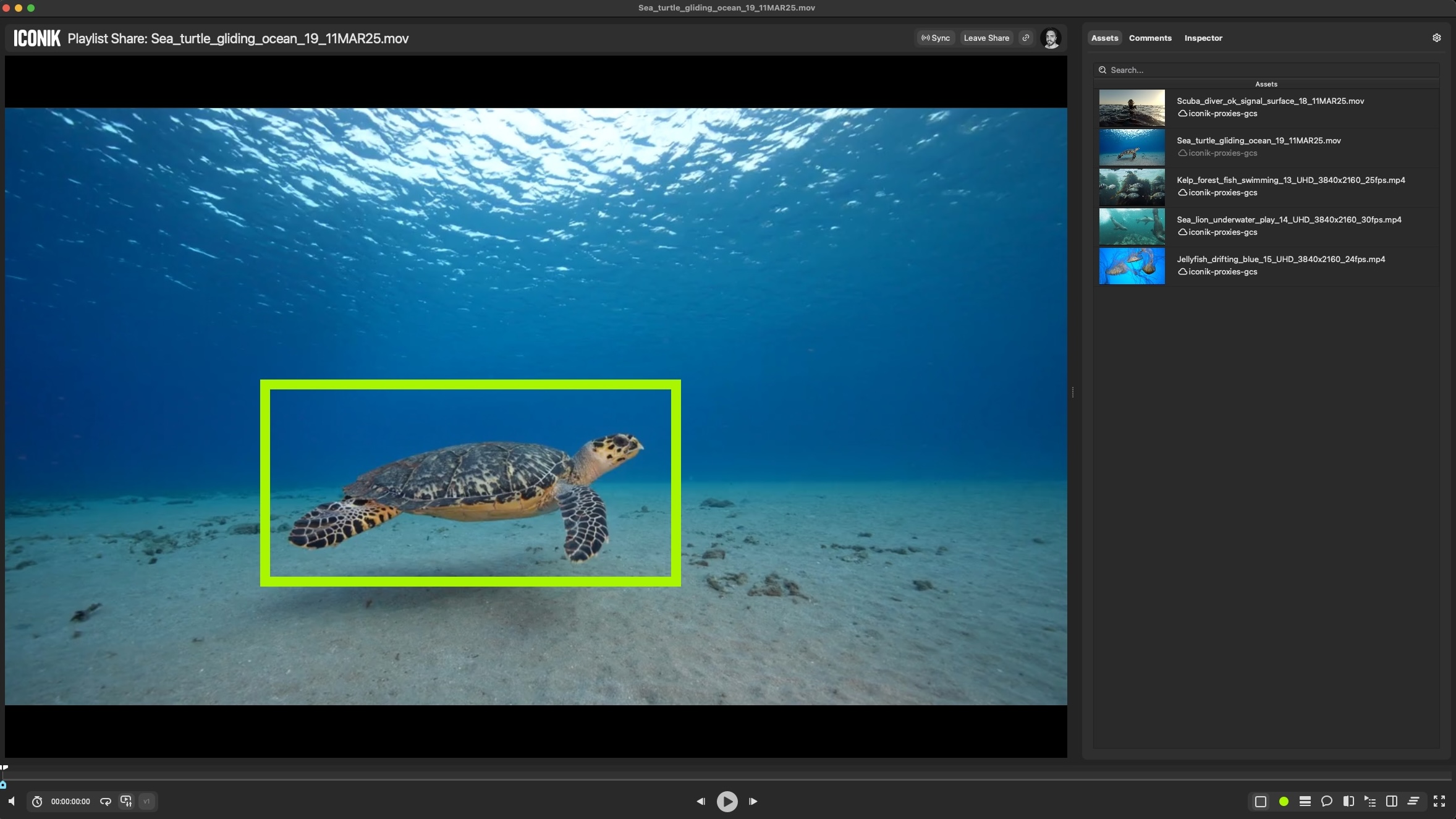

- Rectangle - Draw rectangular shapes to frame or highlight regions

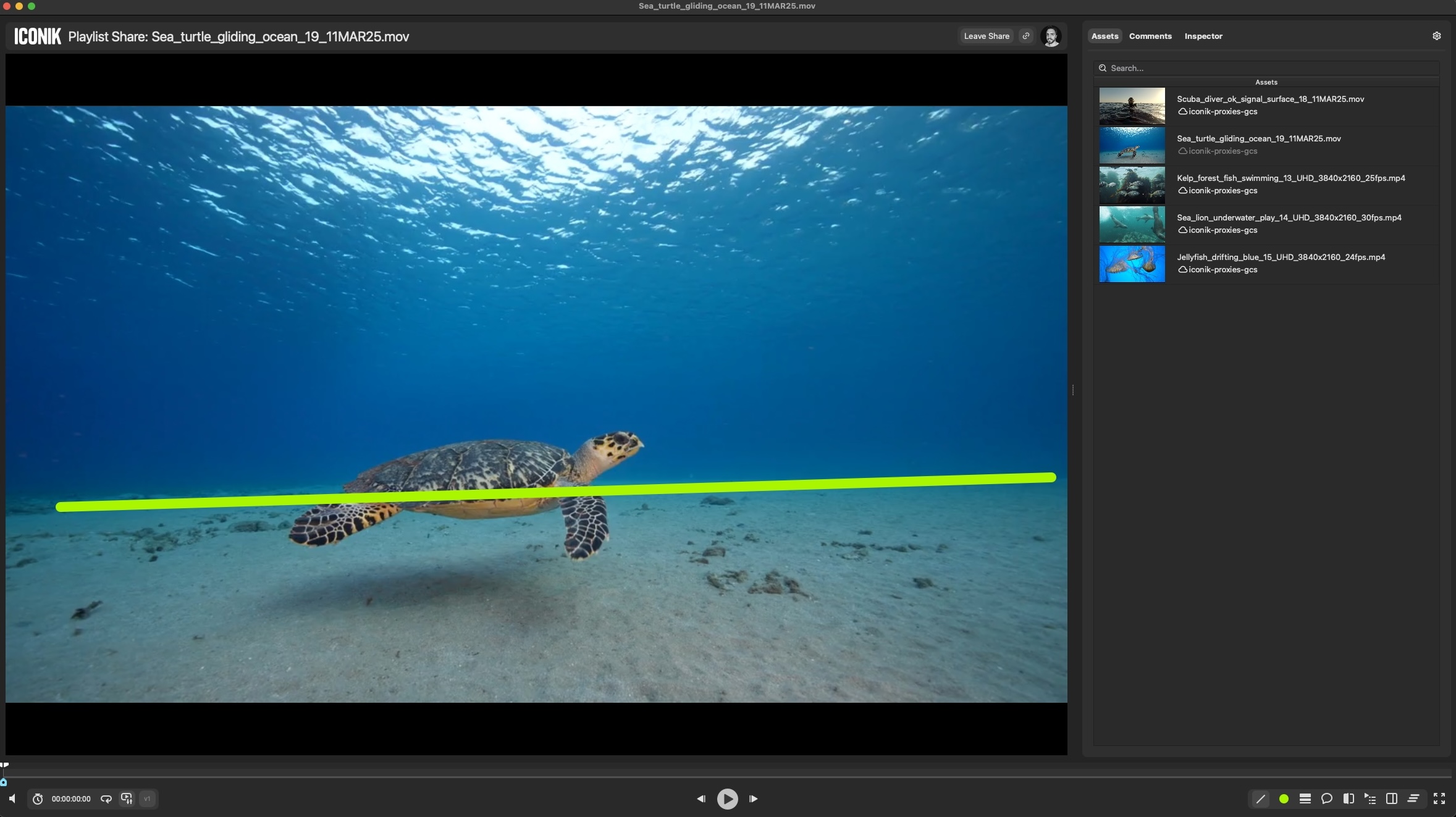

- Line - Draw straight lines between two points

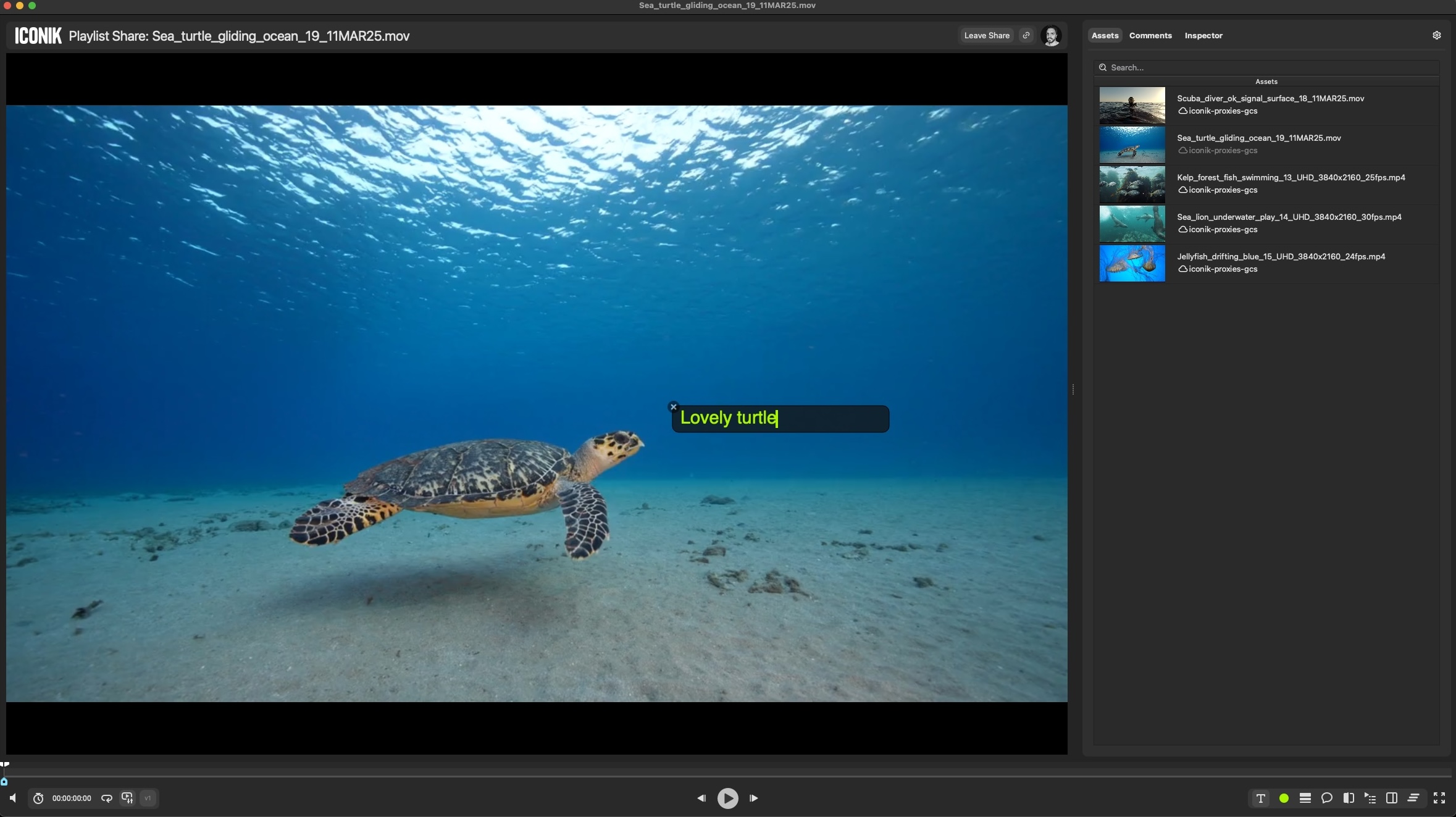

- Text - Add text labels and notes directly on the video
- Laser - Temporary pointer that appears in real-time during sync sessions (does not save as a permanent annotation)
- Zoom - Zoom into the video to see details more closely by selecting a portion of the image

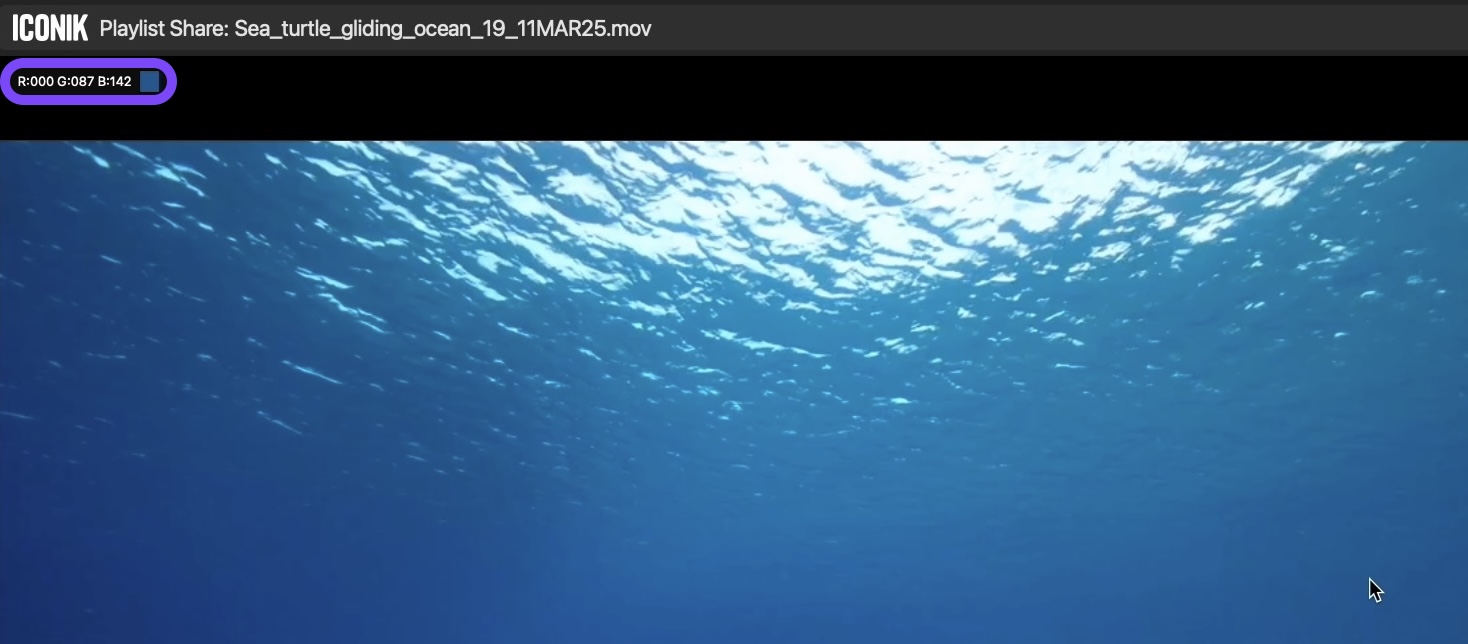

- Eye Dropper - Sample colors from the video (useful for color reference)
- Select - Select and move existing annotations, or resize and edit them

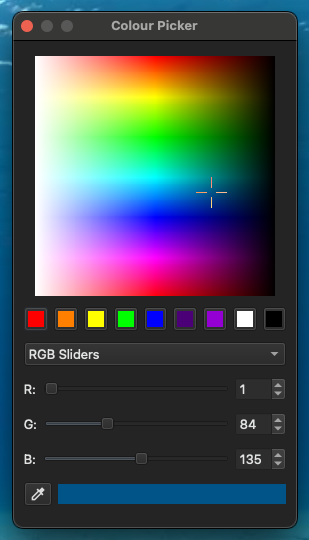

Color picker
Choose colors for your annotations using multiple methods:
- Color Gradient - Click anywhere in the color spectrum to select a color visually
- Preset Swatches - Click one of the preset color squares for quick access to common colors
- RGB Sliders - Fine-tune your color by adjusting the Red (R), Green (G), and Blue (B) sliders individually for precise color values
- Color Preview - The bar at the bottom shows your currently selected color
The selected color will be applied to all new annotations you create until you choose a different color.

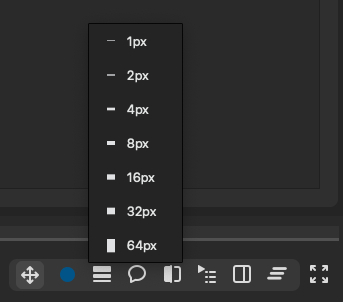

Line width selector
Choose the thickness of your annotation lines and strokes. Select from preset widths:
- 1px - Thinnest line (fine detail work)
- 2px - Thin line
- 4px - Medium-thin line
- 8px - Medium line
- 16px - Medium-thick line
- 32px - Thick line
- 64px - Thickest line (bold emphasis)
The selected width applies to all drawing tools, including brush, arrow, line, circle, and rectangle.
Using annotations
To add an annotation or markup your media:
- Select an annotation tool from the tools menu
- Choose your color and line width
- Draw directly on the playback area
- Annotations are associated with specific frames or frame ranges
Annotation hotkeys
- [Ctrl/command+z] - Undo annotation

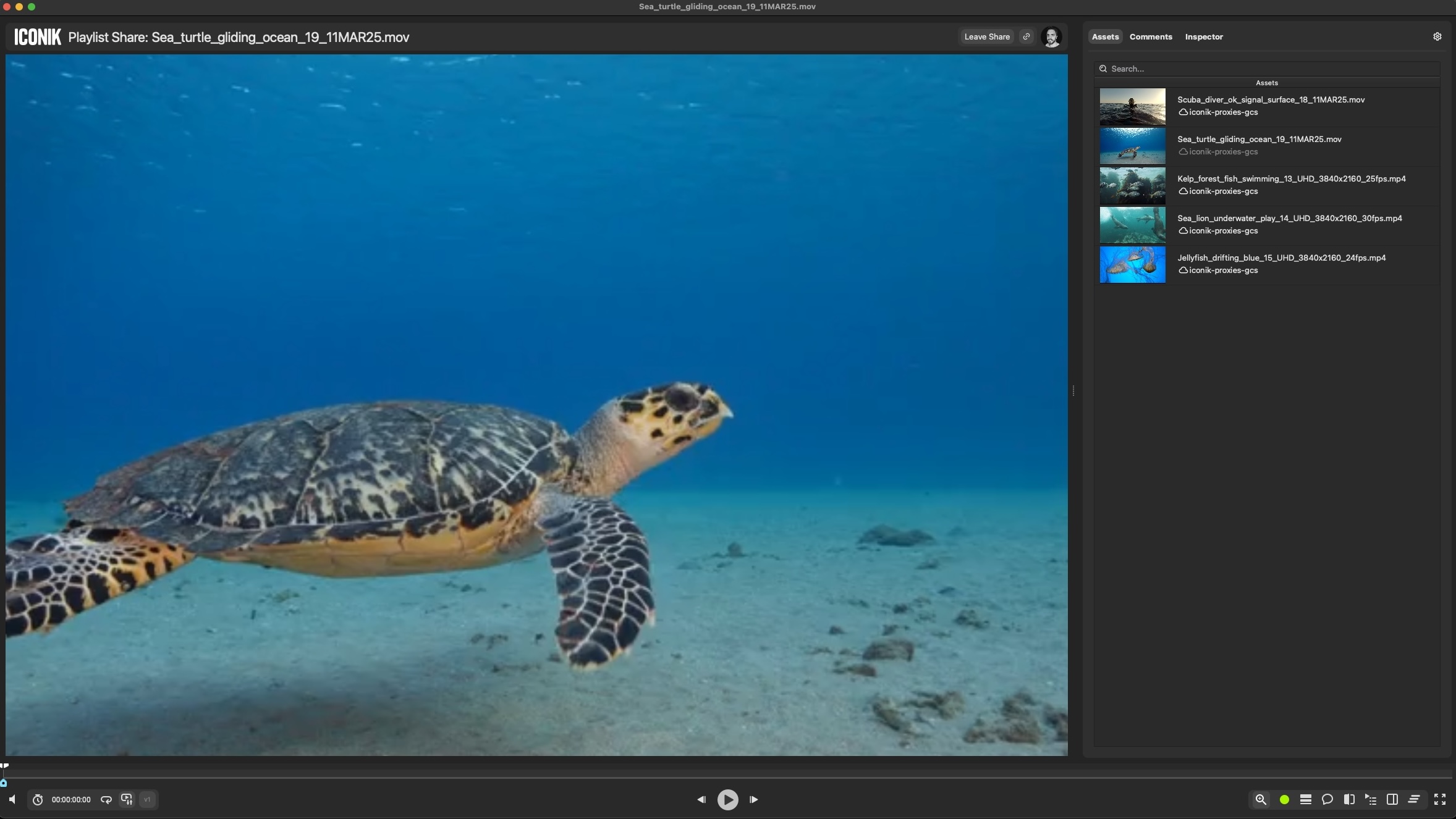

Zoom and pan
Zoom into your media to examine details more closely using any of these methods:
Hotkeys
- [+] - Zoom in
- [-] - Zoom out
- [Backspace] - Reset zoom (Windows)
- [Delete] - Reset zoom (Mac))
- [Shift] - hold down shift and drag the image for panning
Mouse/trackpad
Use the scroll wheel or two fingered up/down on track pad to zoom in and out
Pinch to zoom also works on trackpad
Zoom tool
- Select the zoom tool from the annotation toolbar
- Click and drag to draw a shape around the area you want to examine
The player will zoom to fit the selected region

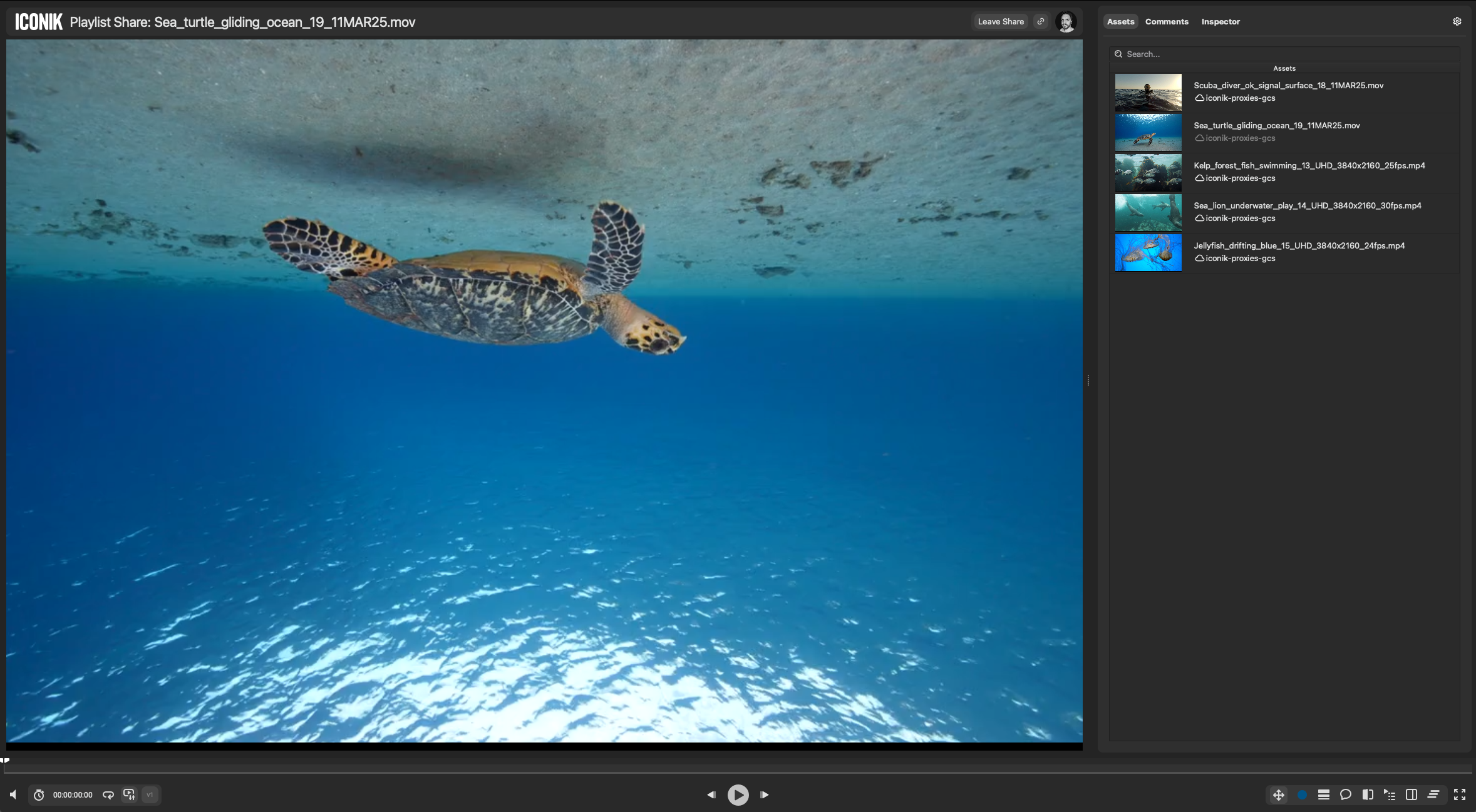

Flip/flop
These transformations affect only the preview display, not the actual file:
- [x] - Flip the image horizontally
- [y] - Flop the image vertically
Or choose Flip or Flop from the View menu

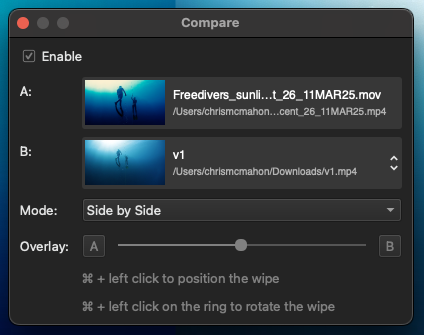

Compare mode
Compare two versions or assets side-by-side to evaluate differences. Check the Enable box to activate compare mode, then select which assets or versions to compare in slots A and B.
Comparison Modes
Choose how to view the comparison:

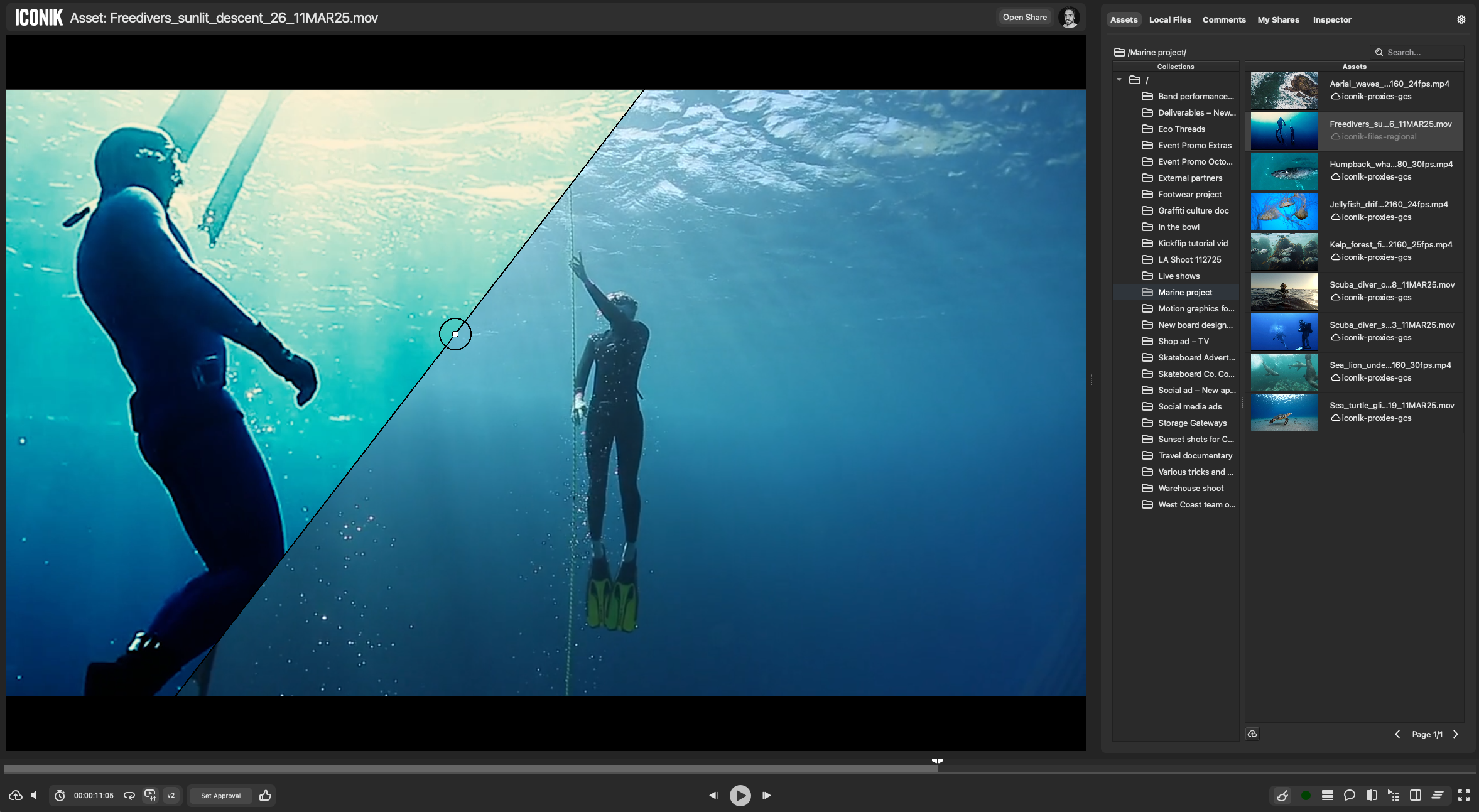

- Wipe - Display both assets with a moveable dividing line. Hold Ctrl (Windows) or Cmd (Mac) and click and drag the line to reveal more of asset A or B. Hold Ctrl (Windows) or Cmd (Mac) and click and drag the circle to change the angle.

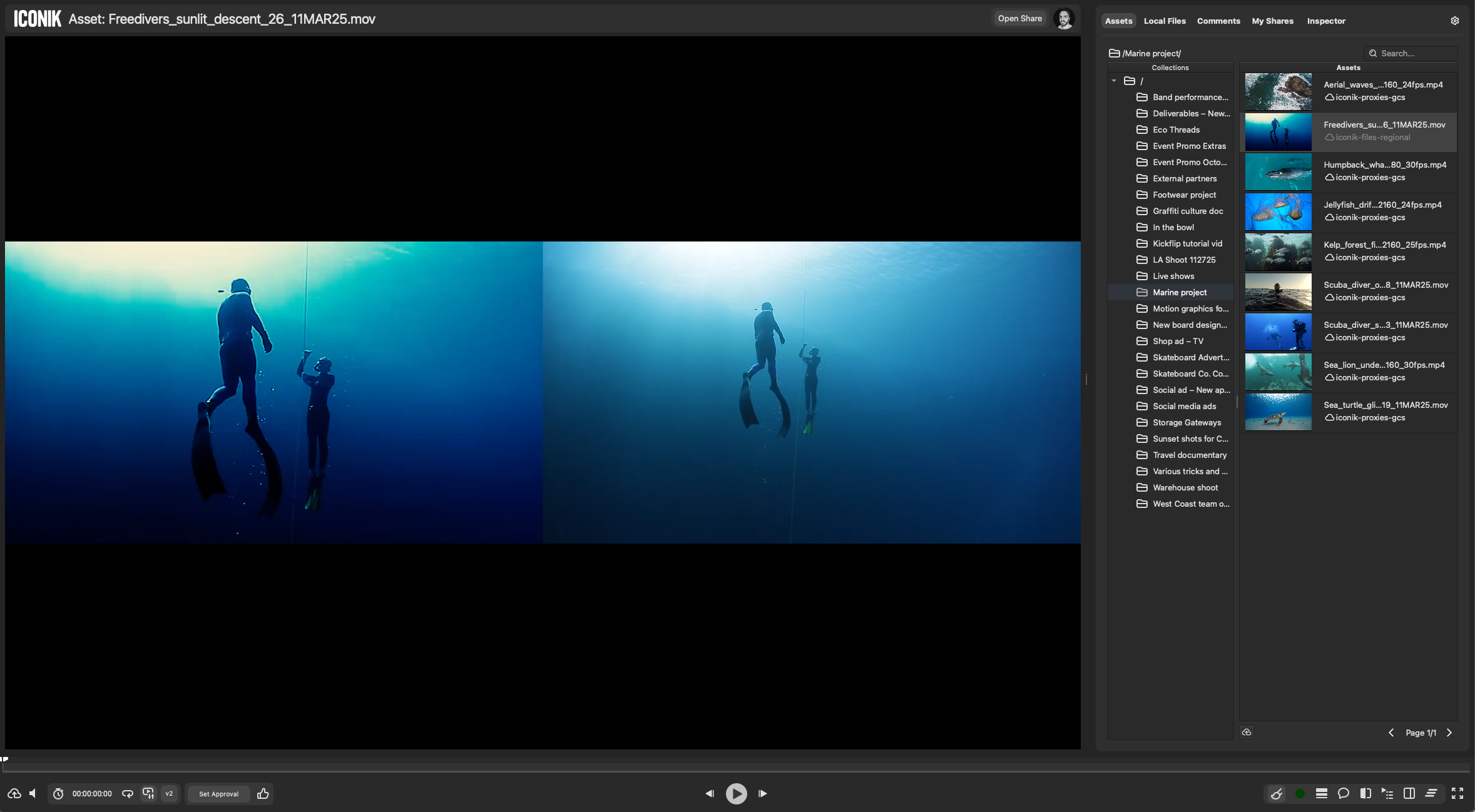

- Side by Side - View both assets simultaneously, displayed left and right

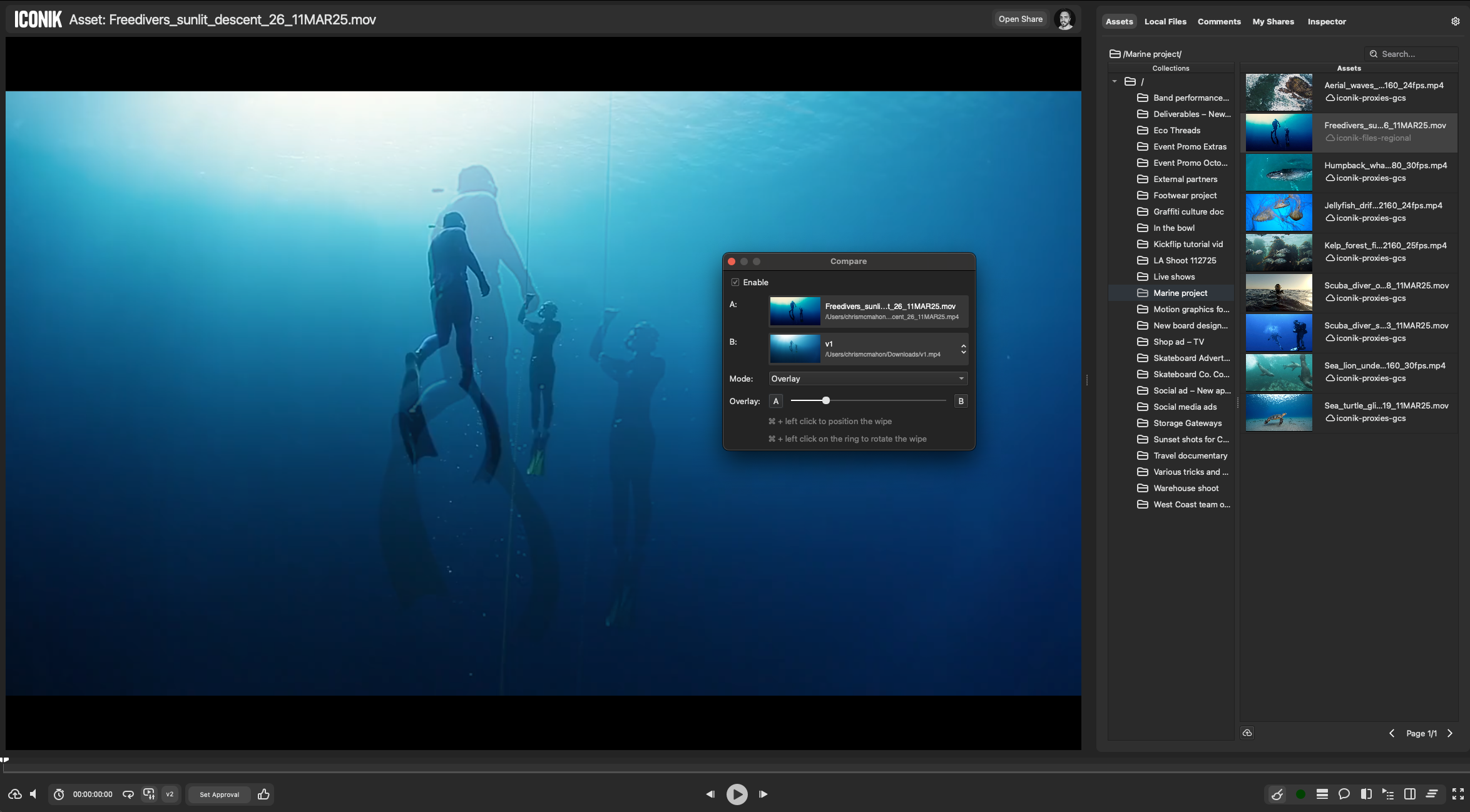

Overlay - Layer one asset on top of the other with adjustable opacity. Use the Overlay slider to control how much of asset A vs. B is visible
Adding comments
Comments work the same way as in the Iconik web interface.

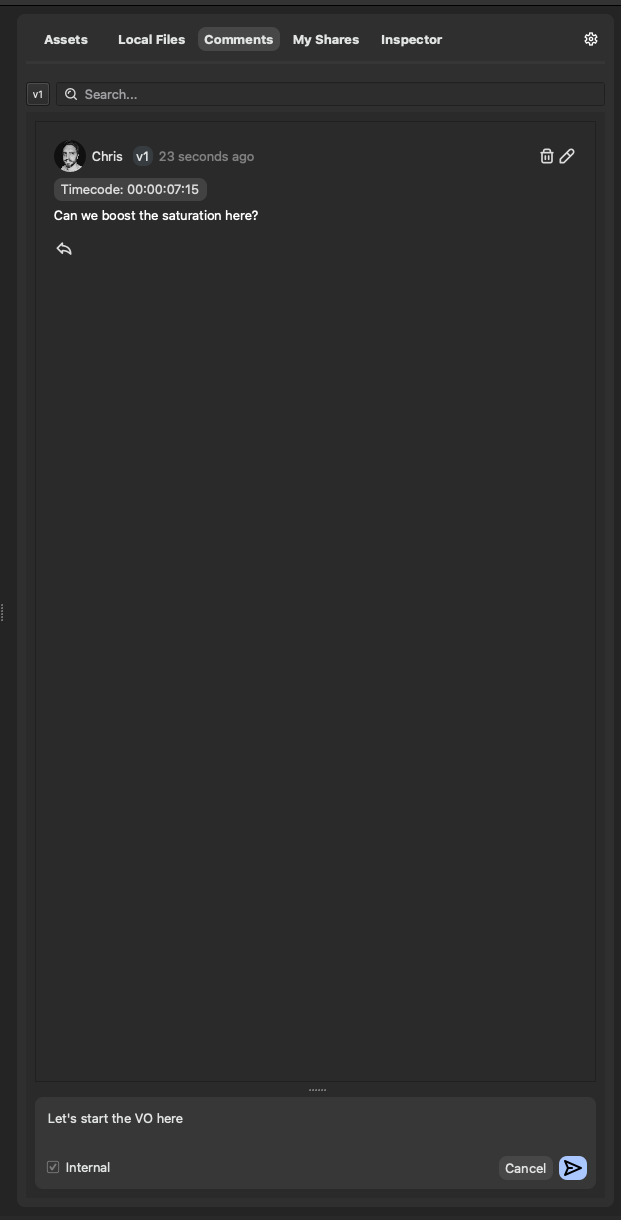

Adding comments
- Position the playhead at the desired frame
- Open the Comments panel
- Write your comment/feedback
- Check “Internal” if you only want other logged-in Iconik users to see your comment
- Click submit
When adding a comment, any current annotations you’ve added on the same frame will be associated with comment. Annotations added previously, or associated with other comments or other participants, will not be included with your comment.

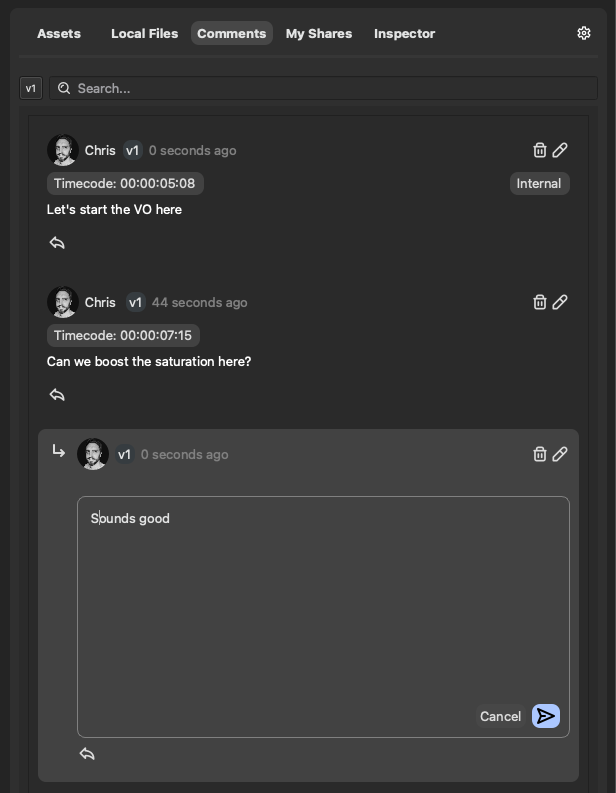

Reply to comments
- Click the reply icon under a comment
- Add your reply
- Click submit

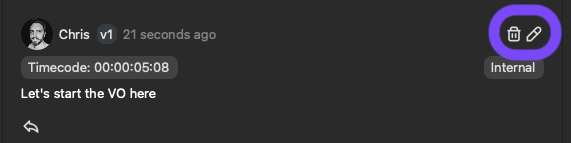

Edit or delete comments
You can edit or delete your own comments using the icons next to your comments.
During editing you can also add, remove or move annotations associated with the comment - while in edit mode, choose the “Select” annotation tool to select or move an individual annotation. While selected, hitting the delete key will delete the annotation.

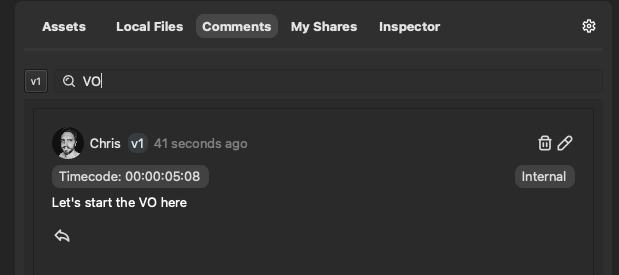

Search comments
- Click the search bar at the top of the comments panel
- Enter the keywords you want to search
- View the returned results search keywords in your comment threads.
Navigate comments
There are several ways to navigate comments:

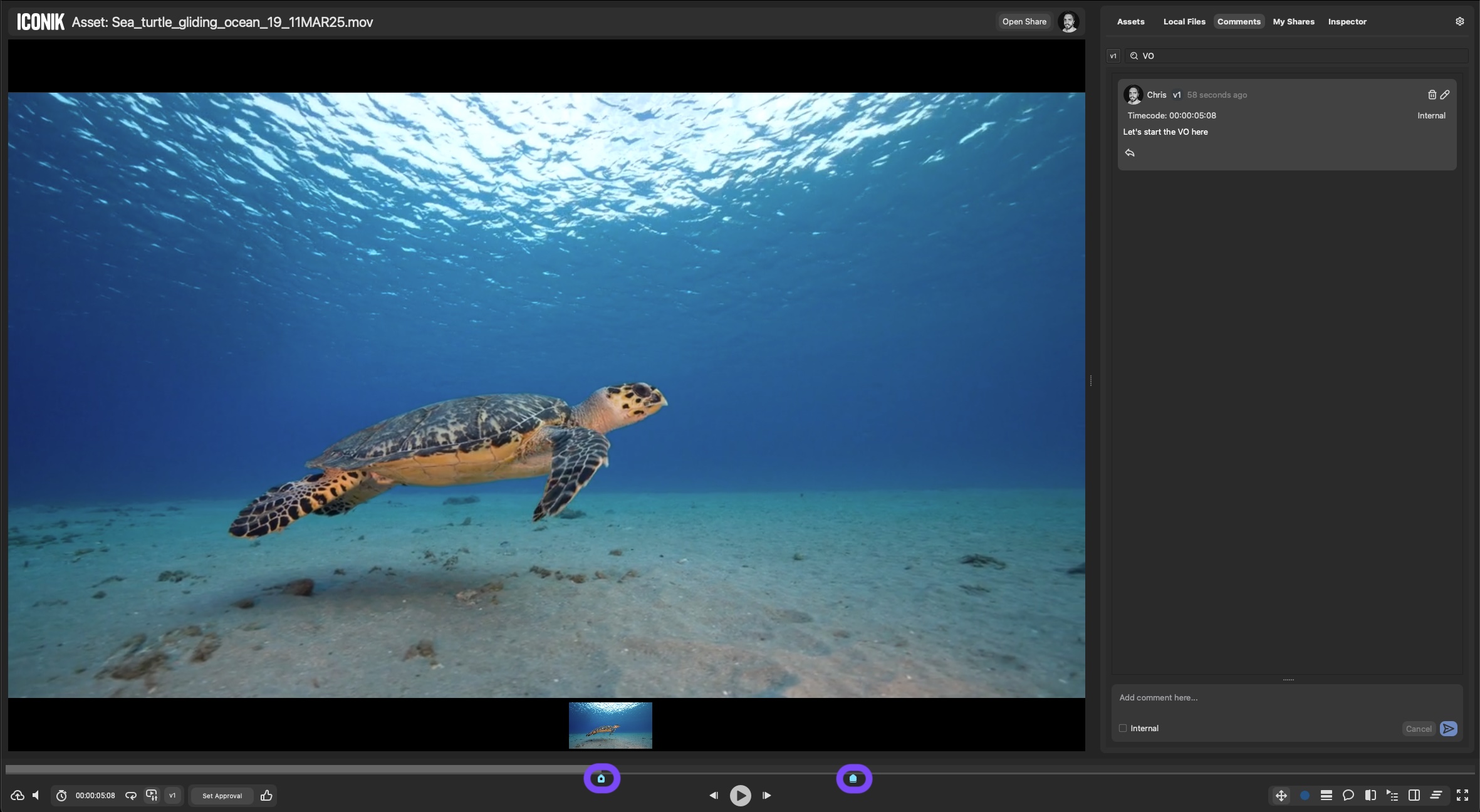

- Comments appear as markers on the timeline. Click a marker to jump to that frame and view the comment
- Use [Ctrl/cmd+ArrowRight] and [Ctrl/cmd+ArrowLeft]
- Click the timecode on a comment to jump directly to that comment
